Standard Dockside

Dock Builders Supply Standard 8 Power Pedestal
Dock Builders Supply Standard 8

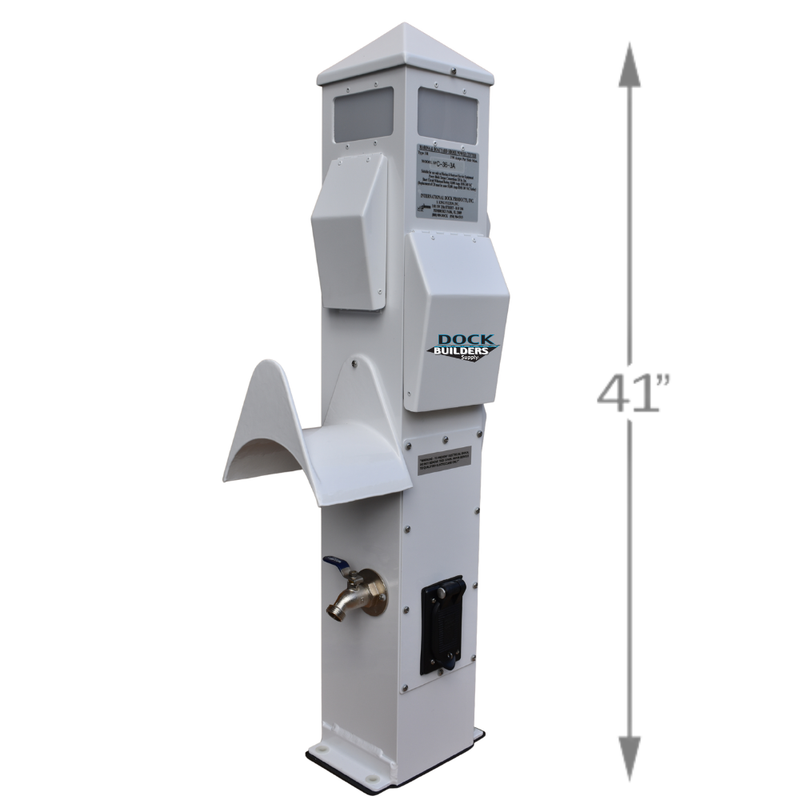

This standard dockside pedestal is 41" tall and features a 8" x 8" casing that is manufactured from a one-piece aluminum extrusion with a wall thickness of 1/8". It includes a welded base, one-piece aluminum cone shaped top, aluminum hinges, and stainless steel fasteners with nylon washers. All receptacles are mounted at a 45° down angle under stylish aluminum covers. For added protection and beauty, the pedestals are powder coated in white, both inside and out.

  • Typically used on medium to large higher-end marinas
  • Larger size accommodates numerous configurations (8" x 8" x 41")
  • Backlit receptacles for easy receptacle plug-in at night
  • Receptacles are mounted under aluminum covers
  • LED light with white opaque Lexan lenses on three sides
Filters
Availability
0 Selected Reset
Product type
0 Selected Reset
$ Price
The Highest Price is $2,538.88 Reset
$
to
$
View as:
  • Standard Dockside Power Pedestal, 100A/50A/50A/20A
    Standard Dockside Power Pedestal, 100A/50A/50A/20A
    Item # PP-I-SPB-45-4A-240
    Configured with:
    • One (1) LED light and photocell
    • Two (2) 50A, 125/250V twistlock receptacles - side 1
    • One (1) 20A GFI duplex receptacle - side 1
    • One (1) 100A, 125/250V receptacle (4-wire, single phase) - side 2
    • Two (2) Water connections
    • One (1) Cast aluminum hose holder
    • One (1) Cable TV/phone connection
    • Standard breakers, NOT GFCI breakers

    Special Order Item! Typically Ships in 2 to 4 Weeks
    $2,538.88
  • Standard Dockside Power Pedestal, 50A/30A/50A/20A
    Standard Dockside Power Pedestal, 50A/30A/50A/20A
    Item # PP-I-SPB-41-4A-310
    Configured with:
    • One (1) LED light and photocell
    • One (1) 50A, 125/250V twistlock receptacle - side 1
    • One (1) 20A GFI duplex receptacle - side 1
    • One (1) 50A, 125/250V twistlock receptacle - side 2
    • One (1) 30A, 125V twistlock receptacle - side 2
    • Two (2) Water connections
    • Two (2) Cast aluminum hose holders
    • One (1) Cable TV/phone connection
    • Standard breakers, NOT GFCI breakers

    Special Order Item! Typically Ships in 2 to 4 Weeks
    $1,764.98
  • Standard Dockside Power Pedestal, 50A/30A/50A/30A
    Standard Dockside Power Pedestal, 50A/30A/50A/30A
    Item # PP-I-SPB-41-4A-350
    Configured with:
    • One (1) LED light and photocell
    • One (1) 50A, 125/250V twistlock receptacle - side 1
    • One (1) 30A, 125V twistlock receptacle - side 1
    • One (1) 50A, 125/250V twistlock receptacle - side 2
    • One (1) 30A, 125V twistlock receptacle - side 2
    • Two (2) Water connections
    • Two (2) Cast aluminum hose holders
    • One (1) Cable TV/phone connection
    • Standard breakers, NOT GFCI breakers

    Special Order Item! Typically Ships in 2 to 4 Weeks
    $1,726.63
