Power Pedestals

This powerful yet compact pedestal is perfect for providing shore power connections to residential boaters or docks with limited space. The Hatteras has similar features as our Lighthouse but in a smaller, more compact frame size. The power options go up to 50 Amps which is powerful enough for most boats making the Hatteras a perfect addition to your residential dock.

• Typically used on residential docks and small marinas
• Smaller than most other power pedestals (31" tall)
• Easy installation with modular base mount bracket assembly
• Compact, versatile and highly configurable
• Heavy resin housing with UV resistant coating

Slimline dockside pedestals stand only 36" tall and feature a compact 6" x 6" casing that is manufactured from a one-piece aluminum extrusion with a wall thickness of 1/8". It includes a welded base, one-piece aluminum cone-shaped top, aluminum hinges, and stainless steel fasteners with nylon washers. For added protection and beauty, the pedestals are powder-coated in white, both inside and out.

• Typically used on higher-end residential docks and small marinas
• Medium size accommodates numerous configurations (6" x 6" x 36")
• Backlit receptacles for easy receptacle plug-in at night
• Receptacles are mounted under aluminum covers
• LED light with white opaque Lexan lenses on three sides

One of our most popular and powerful units, the Lighthouse pedestal has a wide range of features. This stylish power pedestal is recognized throughout the marine industry for its practicality and exceptional durability. Engineered to withstand the most severe weather conditions, lighthouse power pedestals can be found in marinas worldwide.

• Typically used on average commercial and residential marinas
• Larger size accommodates numerous configurations (44" tall)
• Hingeless base makes installation and maintenance easy
• Backlit faceplate for easy receptacle plug-in at night
• Lockable weatherproof doors protect breakers and receptacles
• Heavy resin housing with UV resistant coating

Eaton provides power to the harshest environments with the Lighthouse SS. Using a durable stainless steel enclosure, this power pedestal can stand up to the harshest of climates. It is highly customizable and can be found from sunny Florida to frozen Alaska. For superior quality and performance, the Lighthouse SS is a perfect finding.

• Typically used in harsh environments on higher-end docks and marinas
• Larger size accommodates numerous configurations (44" tall)
• Backlit faceplate for easy receptacle plug-in at night
• Lockable weatherproof doors protect breakers and receptacles
• Aluminum hose/cable brackets come standard
• Heavy 316L stainless steel housing, powder coated white

Created as a complete solution for fire and rescue needs, this pedestal features fire extinguisher storage and a mounted alarm strobe light and siren, as well as an optional life ring. This unit is well equipped for any marina emergency. The alarm strobe light and siren is automatically activated when the door is open or life ring is removed.

• Aesthetically matches Lighthouse SS models (44" tall)
• Alarm strobe light & siren is automatically activated when door is open or life ring is removed
• Heavy 316L stainless steel housing, powder coated white

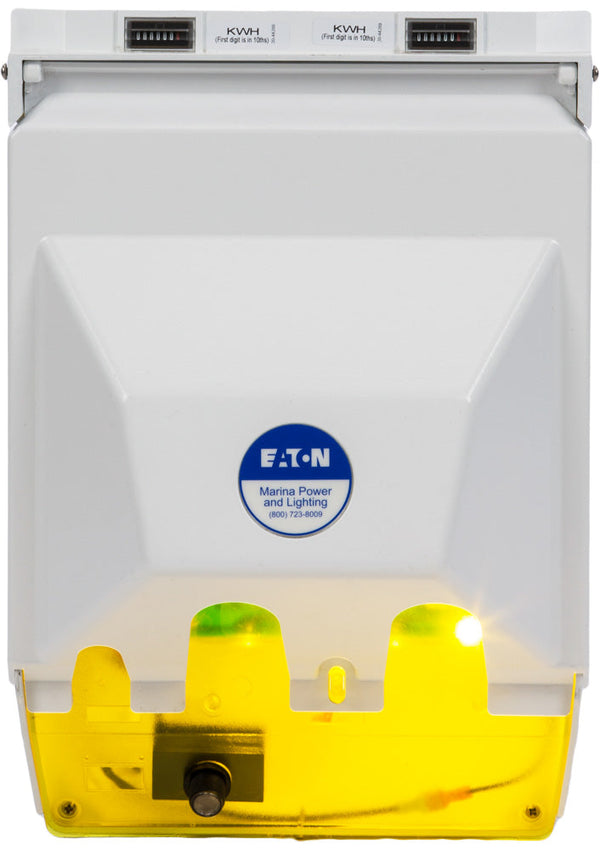

The Newport Harbor Mate provides a new solution to your overcrowded, high-traffic, and narrow docks. This shore power option has multiple modular mounting options to fit your personal dock needs. This economical, small device can easily be installed on a dock box or piling, providing a mini-power source to your marina.

• Multiple space-saving mounting options: dock box, pole, or stand
• Very compact. Measures only 14.5" tall x 10.5" wide x 10.4" deep
• Optional stainless steel stand with water connection
• Designed for integration with triangle dock box model DB-BW-431
• Heavy resin housing with UV resistant coating

This standard dockside pedestal is 41" tall and features a 8" x 8" casing that is manufactured from a one-piece aluminum extrusion with a wall thickness of 1/8". It includes a welded base, one-piece aluminum cone shaped top, aluminum hinges, and stainless steel fasteners with nylon washers. For added protection and beauty, the pedestals are powder coated in white, both inside and out.

• Typically used on medium to large higher-end marinas
• Larger size accommodates numerous configurations (8" x 8" x 41")
• Backlit receptacles for easy receptacle plug-in at night
• Receptacles are mounted under aluminum covers
• LED light with white opaque Lexan lenses on three sides
