Floating Dock Hardware is designed to help maintain the structural integrity of wood framed floating docks that are subjected to the torquing motion of wind and waves. Unlike upland decks or fixed docks which can be fastened with screws and nails, a floating dock’s frame is subject to torsional stresses that require it to be bolted together.

Our framing brackets, hinges, and fasteners provide significant strength and rigidity to the dock frame, thereby adding longer life and increasing the utility of the floating dock. A strong frame will provide a stable platform onto which dock floats and decking materials may be fastened.

  • ¼” Thick Steel Construction
  • Hot-Dipped Galvanized for Maximum Corrosion Resistance
  • Assorted Male / Female Hinges for Connecting Dock Sections

In addition, a variety of piling hoops, piling guides, and pipe holders provide the means to secure your floating dock.

Filters
Availability
0 Selected Reset
Product type
0 Selected Reset
$ Price
The Highest Price is $43.21 Reset
$
to
$
View as:
  • Inside Corner Bracket

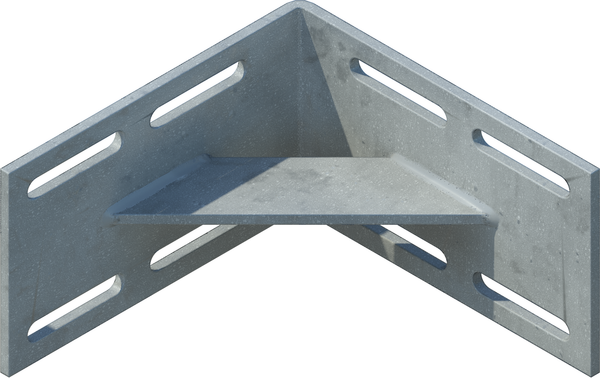

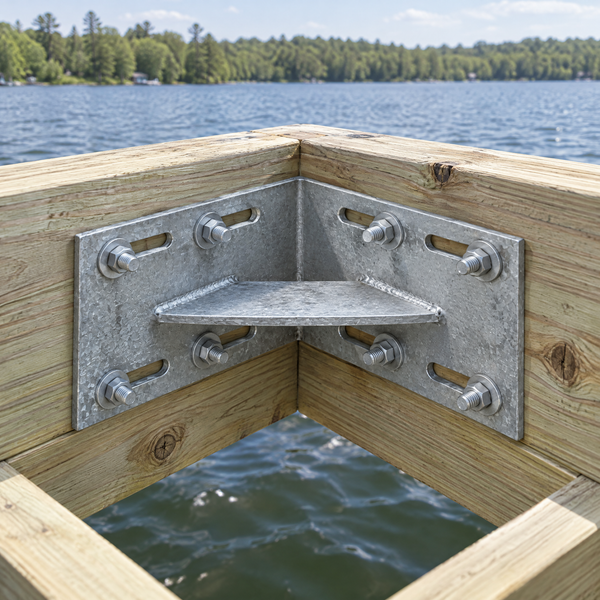

    Inside Corner Bracket
    Item # ICL
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Used with all outside corner brackets.
    • Install using 1/2" carriage bolts.

    In Stock
    $20.47
  • Outside Corner End

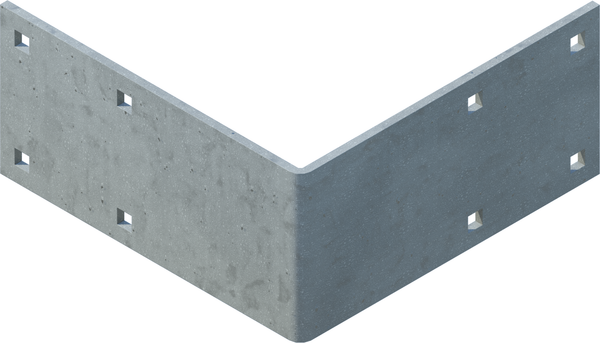

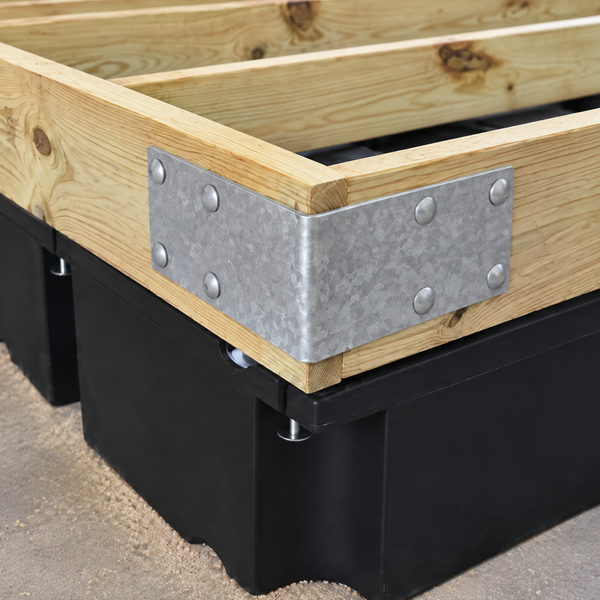

    Outside Corner End
    Item # OC-E
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Used at the ends of docks and fingers.
    • Install using 1/2" carriage bolts.

    In Stock
    $18.93
  • Outside Corner Male

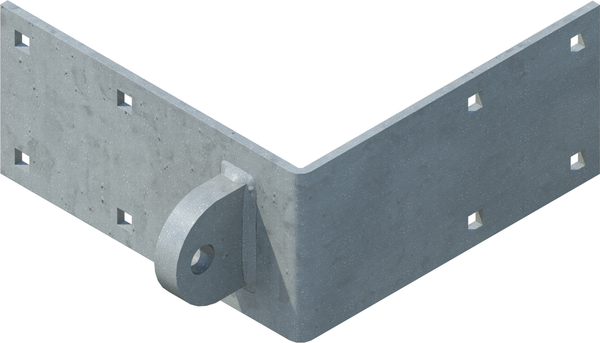

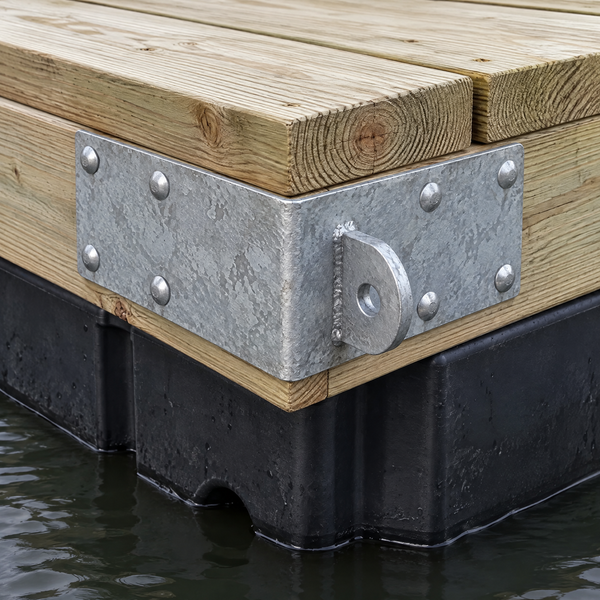

    Outside Corner Male
    Item # OC-M
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • One 3/4" thick male tab.
    • Connects to female tabbed brackets with 3/4" pin.
    • Install using 1/2" carriage bolts.

    In Stock
    $28.44
  • Outside Corner Female

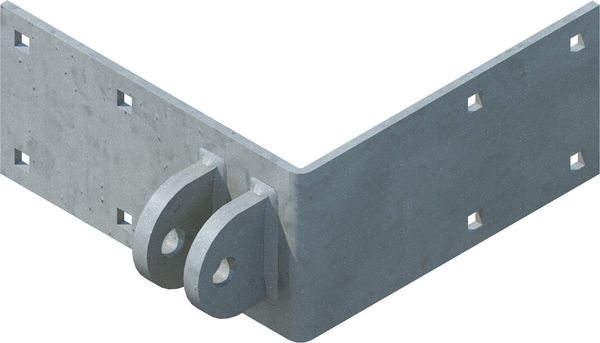

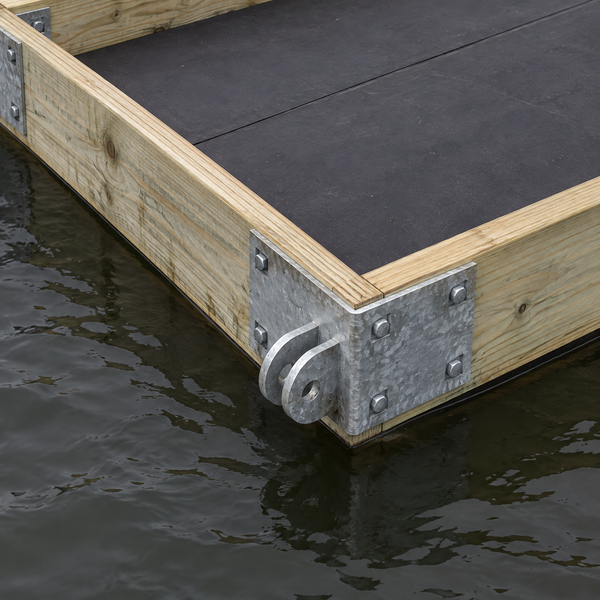

    Outside Corner Female
    Item # OC-F
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Two 1/2" thick female tabs.
    • Connects to male tabbed brackets with 3/4" pin.
    • Install using 1/2" carriage bolts.

    In Stock
    $30.72
  • Male T Connector
    Male T Connector
    Item # T-ConM
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • One 3/4" thick male tab.
    • Connects to female tabbed brackets with 3/4" pin.
    • Install using 1/2" carriage bolts.

    In Stock
    $15.90
  • Female T Connector
    Female T Connector
    Item # T-ConF
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Two 1/2" thick female tabs.
    • Connects to male tabbed brackets with 3/4" pin.
    • Install using 1/2" carriage bolts.

    In Stock
    $17.96
  • Back-Up Plate 5

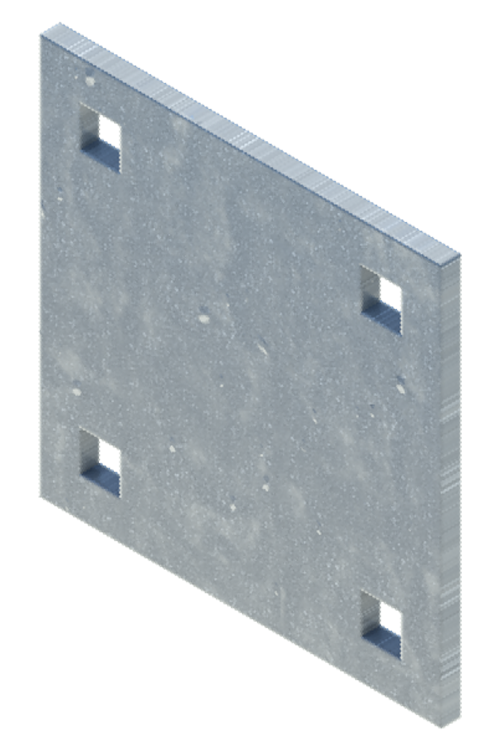

    Back-Up Plate 5" x 5"
    Item # BP-5x5
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Used to reinforce T-Connectors and chain retainers.
    • Install using 1/2" carriage bolts.

    In Stock
    $4.94
  • Angle Bracket 2-1/2

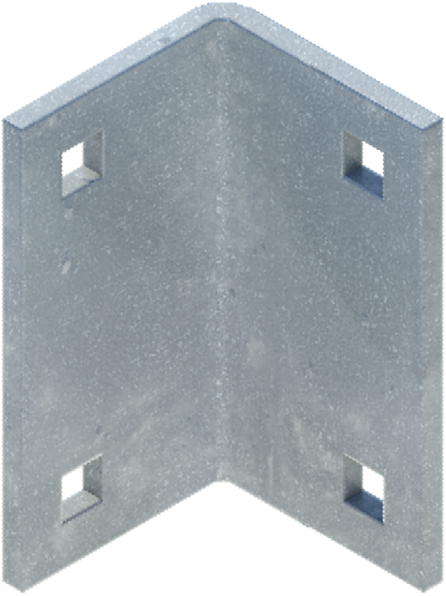

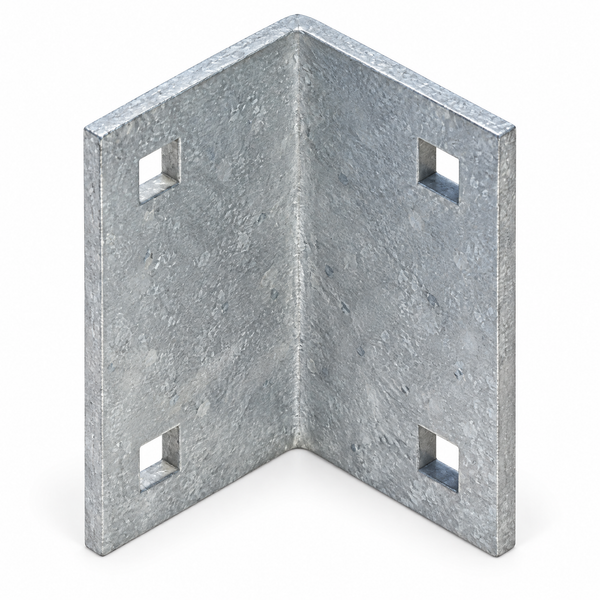

    Angle Bracket 2-1/2" L x 5" H HDG
    Item # Angle-2.5x5
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Used to secure internal stringers to exterior frame and cross-supports.
    • Install using 1/2" carriage bolts.

    In Stock
    $4.99
  • Washer Plate 1-1/2

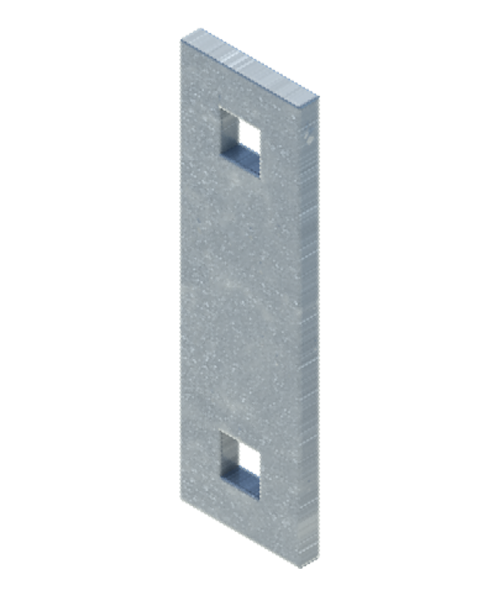

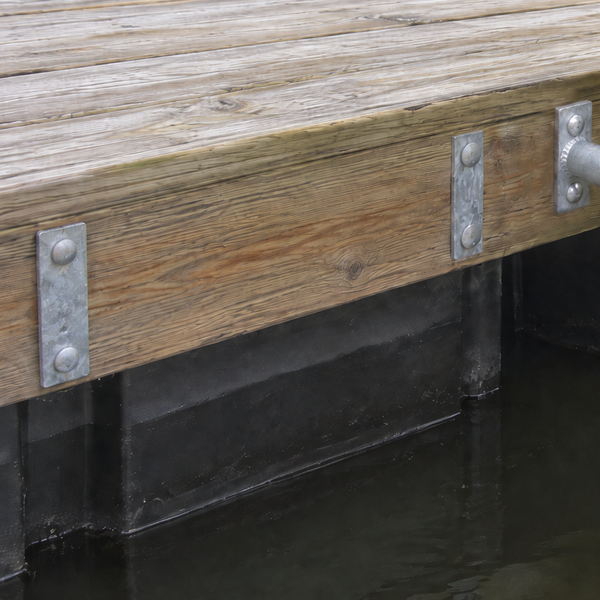

    Washer Plate 1-1/2" x 5"
    Item # W-1.5x5
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Use two washer plates to reinforce each angle bracket.
    • Install using 1/2" carriage bolts.

    In Stock
    $1.85
  • 1/2
    1/2" x 3" Carriage Bolt Set, Galvanized
    Item # CB-1203S
    Carriage Bolt Set Containing:
    • One (1) 1/2" x 3" Carriage bolt, galvanized
    • One (1) 1/2" Round flat washer, galvanized
    • One (1) 1/2" Hex nut, galvanized
    In Stock
    $1.48
  • 1/2 x 4-1/2
    1/2 x 4-1/2" Carriage Bolt Set, Galvanized
    Item # CB-12045S
    Carriage Bolt Set Containing:
    • One (1) 1/2" x 4-1/2" Carriage bolt, galvanized
    • One (1) 1/2" Round flat washer, galvanized
    • One (1) 1/2" Hex nut, galvanized
    In Stock
    $1.78
  • 3/4
    3/4" Connector Pin Set
    Item # ConPinS
    • 3/4" Steel Pin
    • Hot-Dipped Galvanized
    • Use to join male and female tabs together
    • Cotter pin included
    In Stock
    $5.45
  • Outside Corner Male-Female

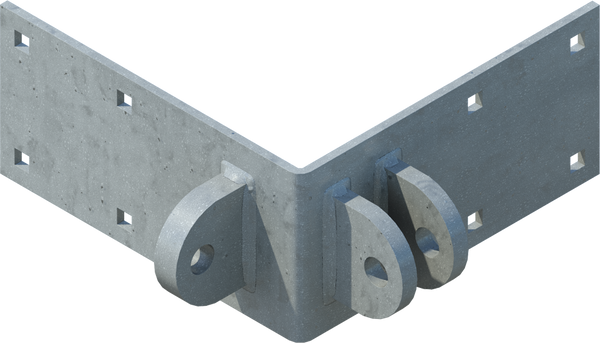

    Outside Corner Male-Female
    Item # OC-MF
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • One 3/4" thick male tab and two 1/2" thick female tabs.
    • Connects to male and female tabbed brackets with 3/4" pins.
    • Install using 1/2" carriage bolts.

    In Stock
    $40.18
  • Outside Corner Female-Female

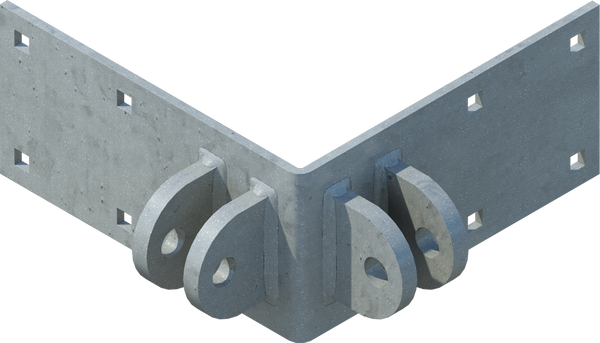

    Outside Corner Female-Female
    Item # OC-FF
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Two sets of 1/2" thick female tabs.
    • Connects to male tabbed brackets with 3/4" pin.
    • Install using 1/2" carriage bolts.

    In Stock
    $40.88
  • Angle Clip 2.5

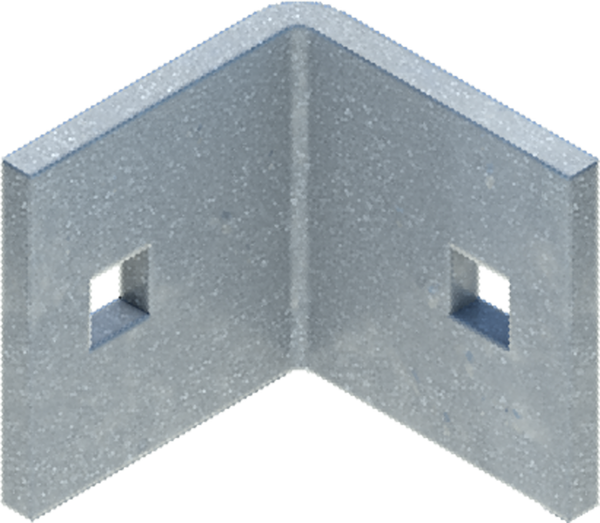

    Angle Clip 2.5" x 2.5" w/ Square Hole (For 1/2" Carriage Bolt)
    Item # AngleClipS
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Used for framing connections where a standard angle bracket won't fit.
    • Install using 1/2" carriage bolts.

    In Stock
    $3.05
  • Angle Clip 2.5

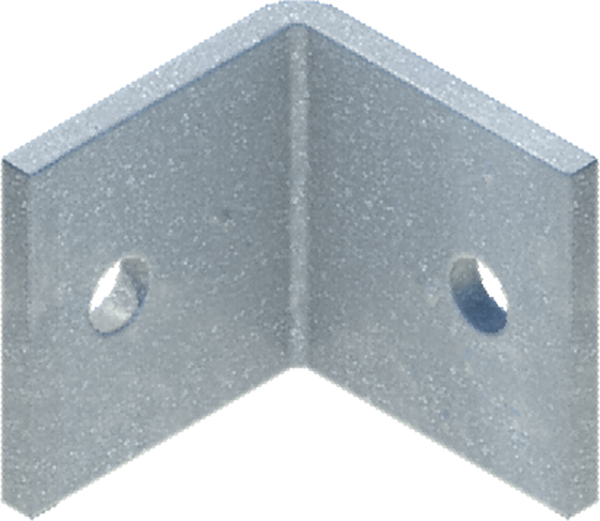

    Angle Clip 2.5" x 2.5" w/ Round Holes (For 1/2" Hex Bolt)
    Item # AngleClipR
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Used for framing connections where a standard angle bracket won't fit.
    • Install using 1/2" hex bolts.

    In Stock
    $3.05
  • Splice Plate 5

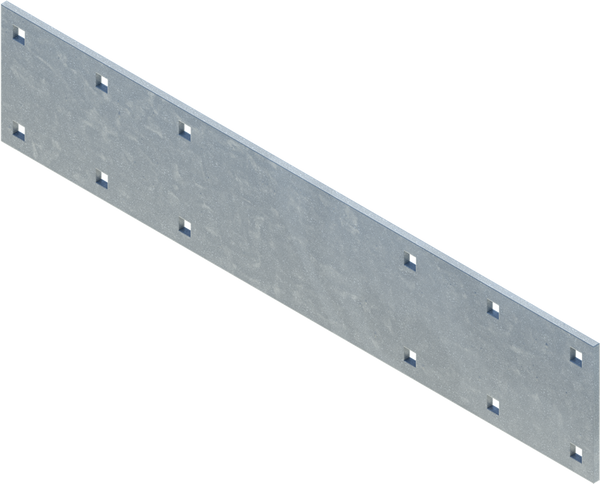

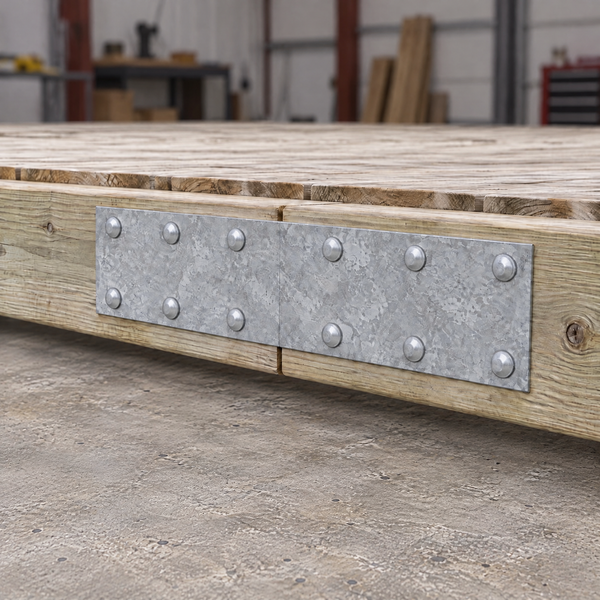

    Splice Plate 5" x 25" HDG
    Item # SP-5x25
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Used to join dock sections or timber together.
    • Install using 1/2" carriage bolts.

    In Stock
    $30.69
  • 3/4
    3/4" x 3-1/2" Hex Bolt Set, Galvanized
    Item # HB-34035S
    Hex Bolt Set Containing:
    • One (1) 3/4" x 3-1/2" Hex bolt, galvanized
    • One (1) 3/4" Round lock washer, galvanized
    • One (1) 3/4" Hex nut, galvanized
    In Stock
    $4.60
  • Finger Deck Stabilizer Bracket 135° (Large)

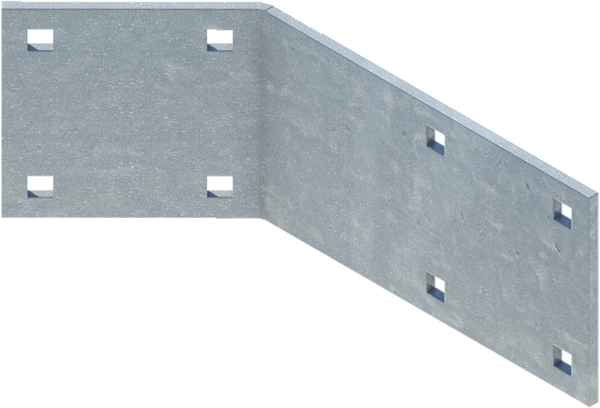

    Finger Deck Stabilizer Bracket 135° (Large)
    Item # FDS-135
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Designed to help stabilize narrow finger piers.
    • Install using 1/2" carriage bolts.

    In Stock
    $17.37
  • Adjustable Angle Bracket 2-1/2

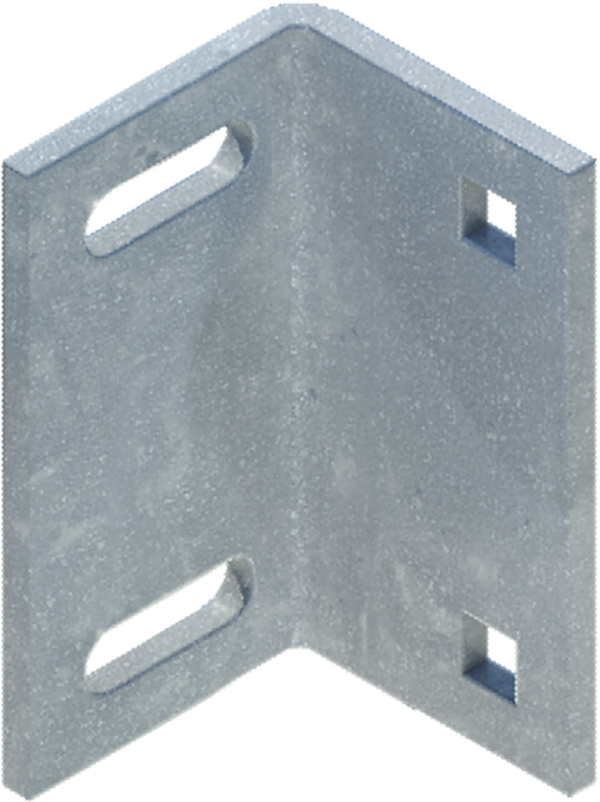

    Adjustable Angle Bracket 2-1/2" L x 5" H
    Item # Angle-2.5x5-Adj
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Slotted bracket helps resolve hole pattern conflicts.
    • Used to secure internal stringers to exterior frame and cross-supports.
    • Install using 1/2" carriage bolts.

    In Stock
    $5.05
  • Inside Corner Pipe Holder 3

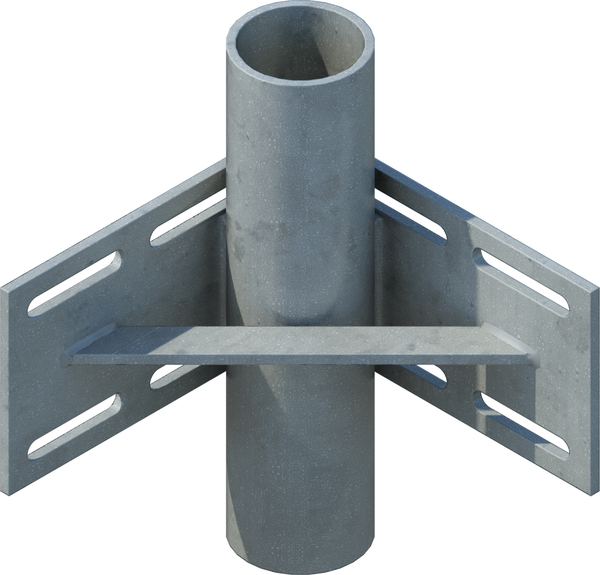

    Inside Corner Pipe Holder 3"
    Item # PH-3IC
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Inside Corner Bracket with welded 3" x 12" pipe.
    • Use 2" steel pipe (not included) to hold dock in place.
    • Install using 1/2" carriage bolts.

    In Stock
    $43.21
  • Outside Corner Male-Male

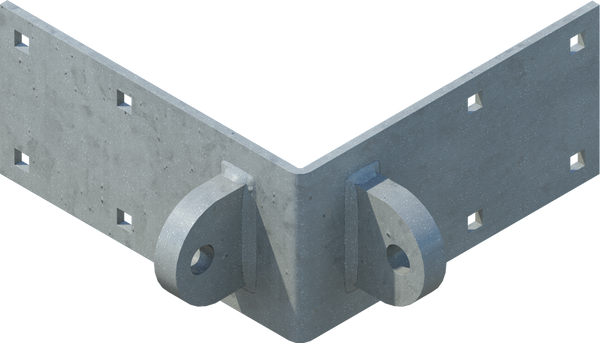

    Outside Corner Male-Male
    Item # OC-MM
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • Two 3/4" thick male tabs.
    • Connects to female tabbed brackets with 3/4" pins.
    • Install using 1/2" carriage bolts.

    In Stock
    $38.50
  • Pipe Holder Outside 3

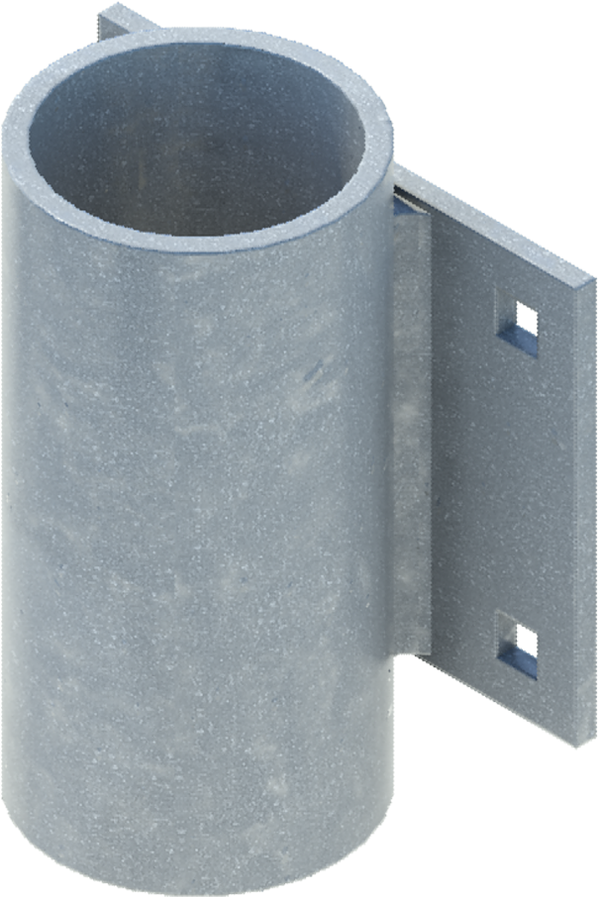

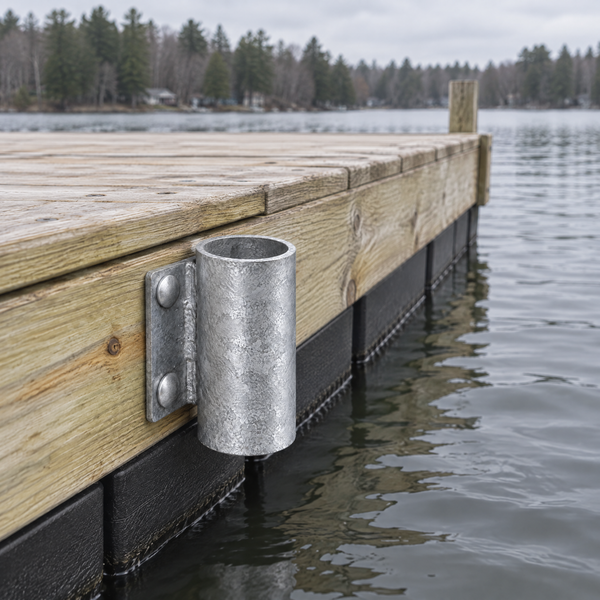

    Pipe Holder Outside 3"
    Item # PH-3O
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • 3" Pipe Holder bolts to outside of dock.
    • Use 2" steel pipe to hold dock in place.
    • Install using one pipe holder attachment kit Item # PH-AK.

    In Stock
    $28.53
  • Pipe Holder 4

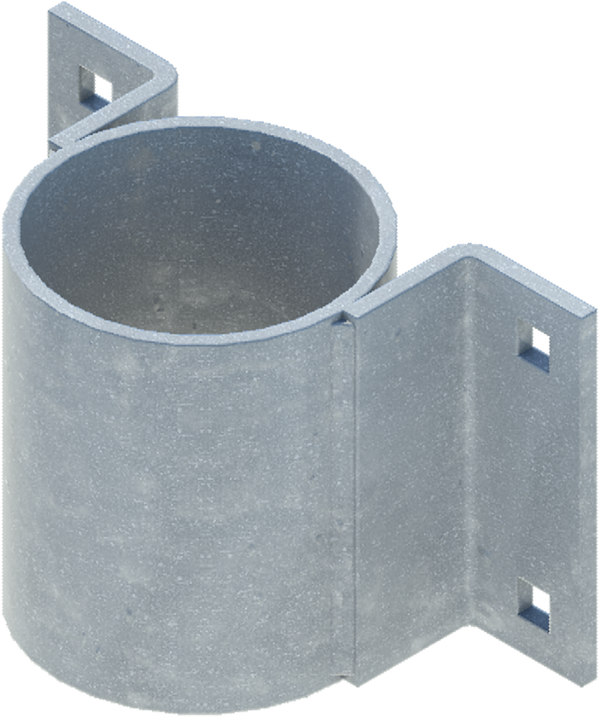

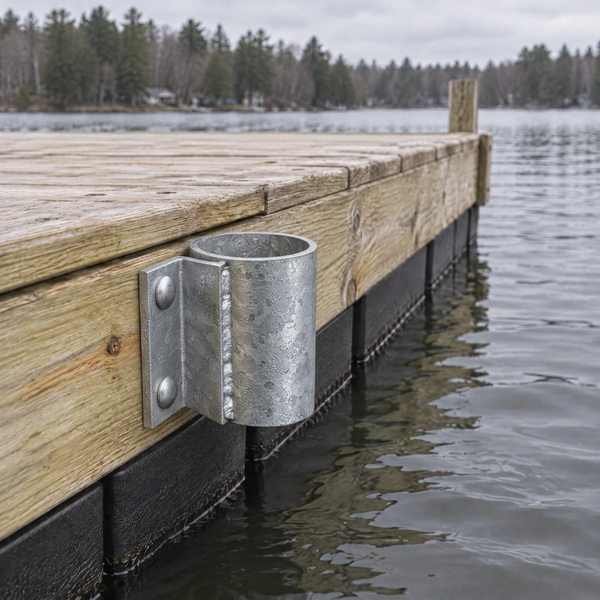

    Pipe Holder 4" Outside HDG
    Item # PH-4O
    • Commercial-Grade 1/4" Steel
    • Hot-Dipped Galvanized
    • 4" Pipe Holder bolts to outside of dock.
    • Use 3" steel pipe to hold dock in place.
    • Install using one pipe holder attachment kit Item # PH-AK.

    In Stock
    $32.52
  • Pipe Holder/Chain Retainer Attachment
    Pipe Holder/Chain Retainer Attachment
    Item #: PH-AK
    Pipe Holder/Chain Retainer Attachment Containing:
    (2) Washer Plate 1-1/2" x 5" HDG
    (4) 1/2 x 4-1/2" Carriage Bolts HDG
    (4) 1/2" Flat Washers HDG
    (4) 1/2" Hex nuts HDG
    In Stock
    $10.88
